Fuel-level & trade optimisation

Inspiration

This project served as inspiration for my studies in Oxford University’s ‘Algorithmic Trading Programme’

TL;DR

Through collaboration between Centrica’s Data Science team and NEAS Energy’s ATS in Denmark, the development of an R fuel-level forecasting package was achieved, resulting in a significant profit increase of £10k for NEAS Energy’s ATS team. This innovative solution not only increased profits for NEAS Energy’s ATS team but has also paved the way for future collaborations and advancements in energy trading.

Business perspective

NEAS Energy’s Algorithmic Trading Solutions (ATS) team sought to acquire and manage energy generating assets that were often overlooked by larger energy companies due to their problems. By acquiring seemingly undesirable assets at scale with small profit margins, NEAS Energy could generate significant profits at scale.

To achieve this strategy, they acquired a biogas asset with a faulty sensor and turned to Centrica’s Data Science team to create a more accurate prediction model for the biogas fuel level. The resulting R package contained a model that detected anomalies and predicted future fuel levels, allowing NEAS Energy to sell the generated power at optimal spot prices using the Lebrade trading algorithm.

Customers perspective

The successful collaboration on this project between NEAS Energy and the customer has solidified the relationship and fostered a collaborative approach that benefits both parties. As a result, the project has opened up many new opportunities for future projects and further collaboration. This has resulted in a stronger, more profitable relationship between the two companies. The project’s success demonstrates the value of a collaborative and straightforward approach to business relationships, leading to mutual benefits and long-term success.

Defining the problem

NEAS Energy was facing a significant business problem in acquiring biogas assets that were not turning a profit due to faulty sensors and inaccurate fuel level readings. This lack of visibility into fuel levels made it difficult to determine how much fuel could be fed into the CHP engines to generate power for the Lebrade algorithm to hedge.

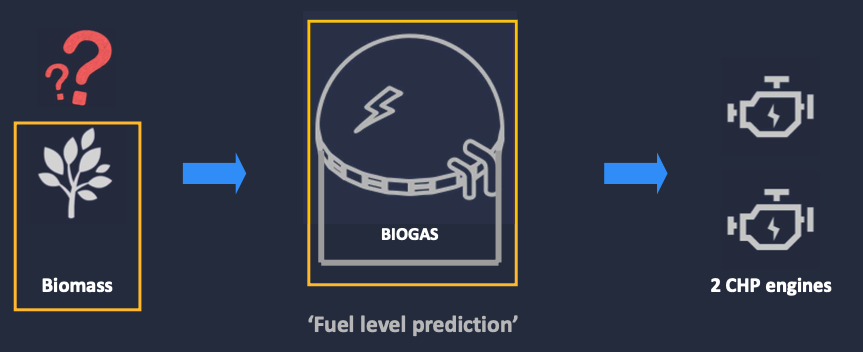

Faulty sensor readings in a biogas asset hinder efficient power production and sales due to uncertainty in fuel level.

This information is then fed into NEAS Energy’s Lebrade trading algorithm, which leverages optimal spot prices and employs hedging strategies to determine the most profitable time to sell power generated.

The development of a reliable and accurate forecasting solution was critical to enable NEAS Energy to acquire seemingly undesirable assets on a large scale for a small profit margin and generate significant profits when these assets are effectively managed.

Privacy agreement

The model incorporates client data such as input biomass, daily schedule, and location-specific weather information, as well as sensitive information related to NEAS Energy’s proprietary Lebrade algorithm. To ensure the security of this data, a privacy impact assessment (PIA) was conducted, and secure measures were implemented for safe data transfer and automatic deletion.

Data Cleaning

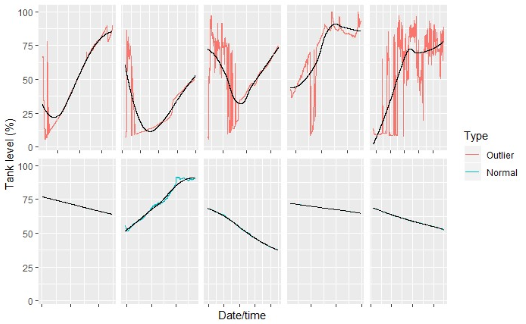

My approach to cleaning the biogas asset data involved implementing a smoothing technique called loess smoothing. This technique allowed me to eliminate the volatility in the fuel level data, which could have resulted in inaccurate predictions of power generation and decreased profits for NEAS Energy.

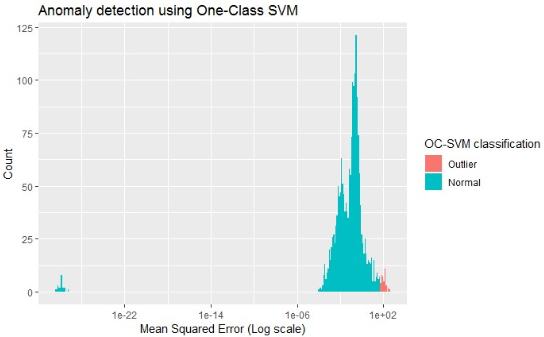

To ensure the accuracy of my model, I calculated the mean square error (mse) between the original data and the loess line. I then split the entire time series into multiple chunks and calculated the mean square error per chunk. This helped identify and remove any outliers that could have skewed the results.

Another important task was differentiating between charging and discharging of the fuel tank. When fuel levels are increasing with time, I flag this as charging and when fuel levels decrease with time the tank level is discharging.

Constant values in the production table signal a connection loss

By creating an increasing and decreasing label for the fuel levels, I was able to identify significant periods of time where the levels remained constant. This was a critical step as it allowed me to identify that these periods of constant values represented a disconnection with the faulty sensor - often followed by a sudden spike or dip in the fuel level, indicating an incorrect reading. This helped me to more accurately clean the data and remove outliers, leading to more reliable and accurate predictions.

Separating noise from signal

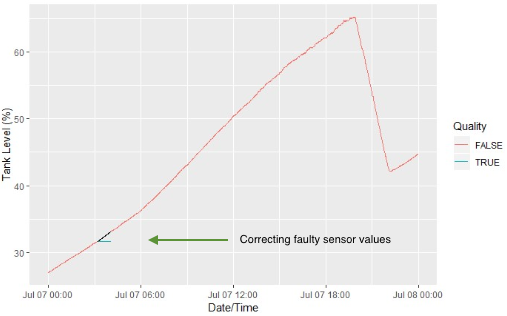

Constant values in the production table signal a connection loss. To maintain a continuous time-series view of the data, I identified periods of signal loss in the production table as ‘FALSE’ or noise and inferred these values. The fuel tank level, signal was referred to as ‘TRUE’.

Model

xgboost is an advanced gradient boosting library that uses decision trees as base learners. It works by iteratively adding new trees to the model while minimizing the loss function, which in this case is the mean squared error. Typically, it is superior to traditional ensemble techniques in its ability to handle missing values, feature importance selection, and regularization such as L1 and L2 regularization.

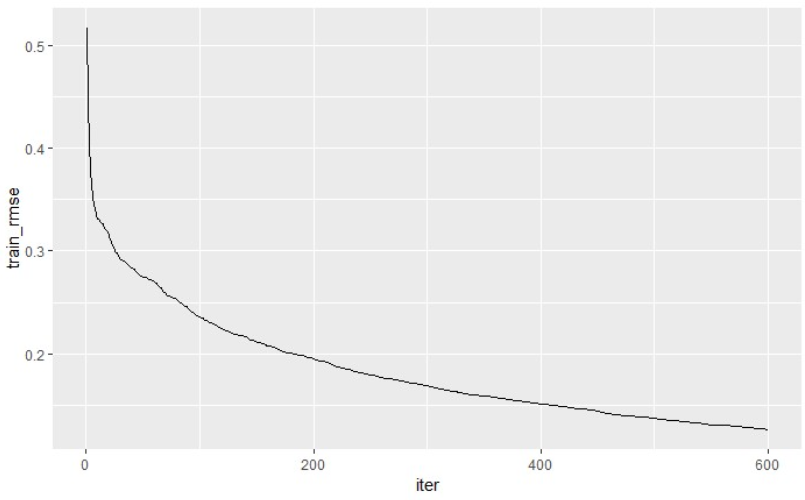

During the hyperparameter tuning process, I found that training the model for 600 iterations produced the optimal performance.

In machine learning, it is common to use cross-validation and a hold-out set to evaluate the performance of a model. Cross-validation involves partitioning the data into multiple subsets and training the model on each subset, while using the remaining subset for validation. This helps to ensure that the model is not overfitting to the training data and is able to generalize well to new, unseen data.

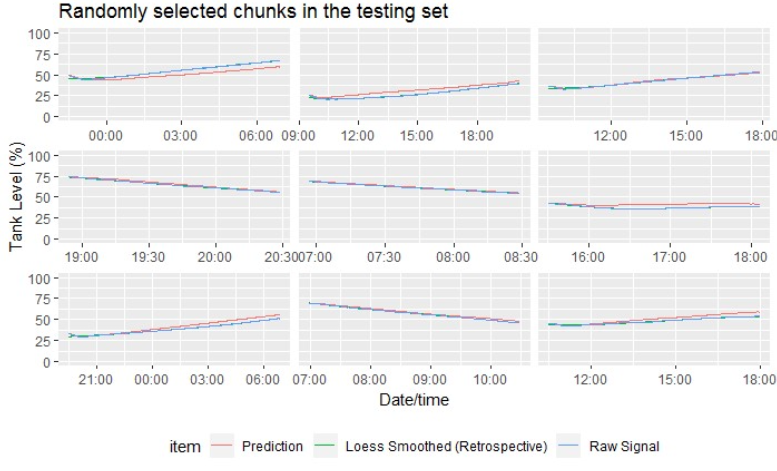

By comparing the actual fuel tank levels with the predicted on the hold-out set, I can determine how well the model is able to generalize to new data.

Delivery

In delivering ths project, I came to understand the importantance to understand of delivering functional, usable, and testable code that can be easily integrated into existing systems. To achieve this, I utilized various R libraries to wrap my code and documentation into a well-structured R package. Specifically, I leveraged the devtools library to develop and build the R package, roxygen2 to write documentation, testthat to automate testing, and pkgdown to create a website for the package.

By using roxygen2, I was able to write detailed documentation for the NEAS ATS team, which simplified their understanding of how to use and integrate the code. This approach facilitated the seamless integration of the R package into their existing systems, increasing their efficiency and productivity. Overall, this approach to packaging and documenting R code is critical in MLops, as it ensures that code is delivered in a functional, usable, and testable format, making it easy for end-users to adopt and incorporate into their work.

Lebrade algorithm

“NEAS Energy’s ATS team utilized this R package in conjunction with their proprietary ‘Lebrade algorithm’ to trade the power output from their CHP engines in the market.”
